Water Level Controllers

(1 products available)

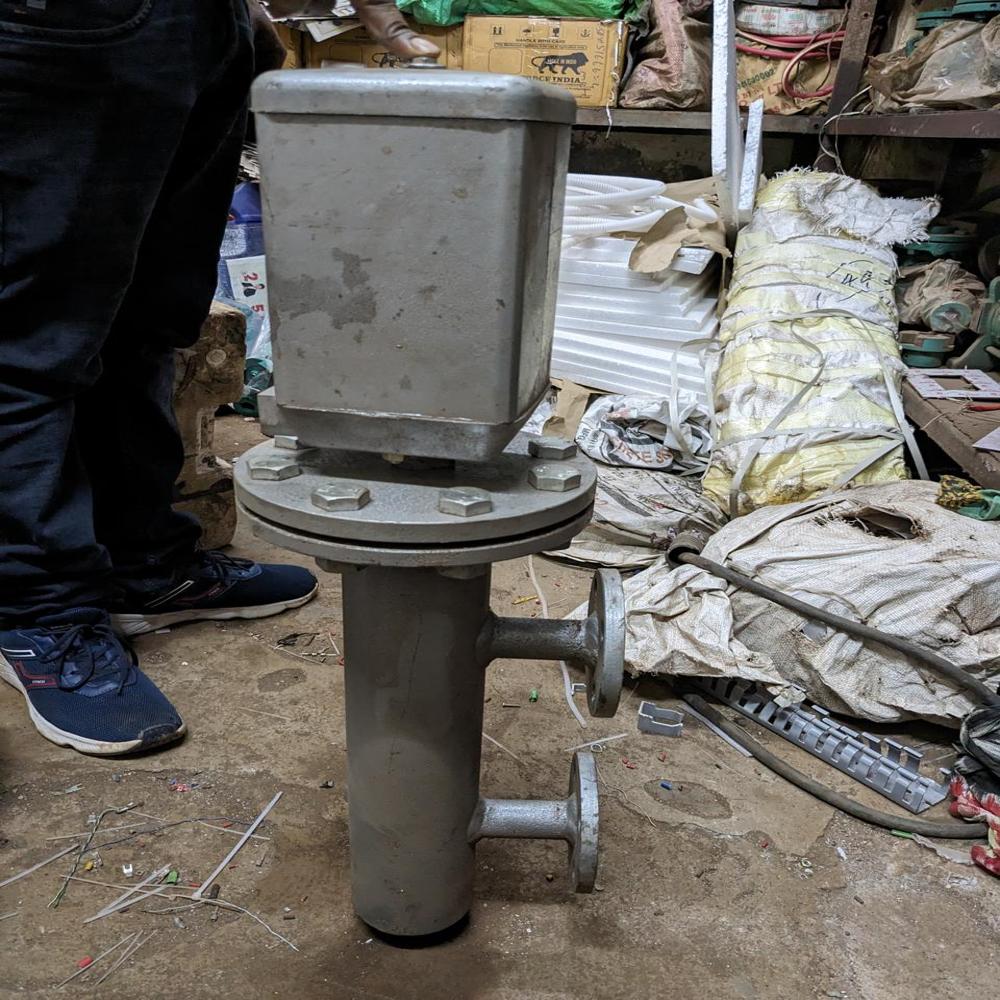

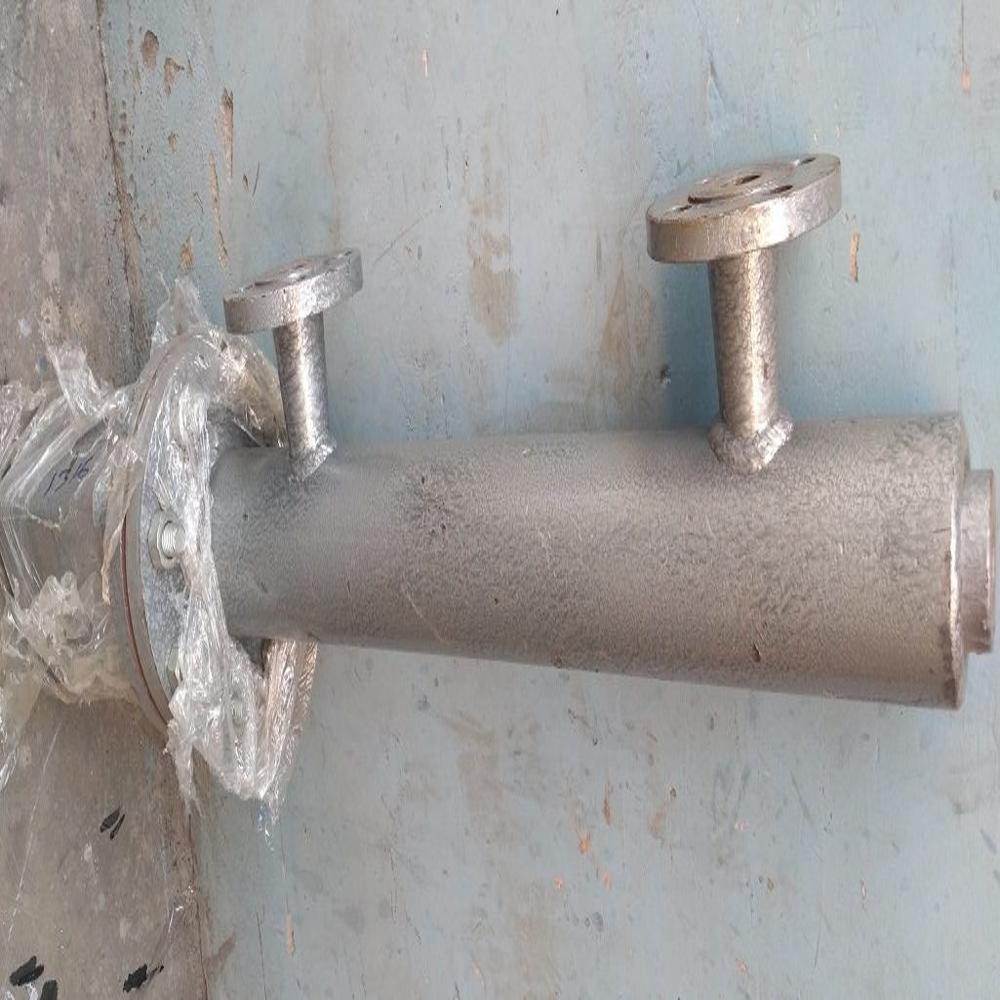

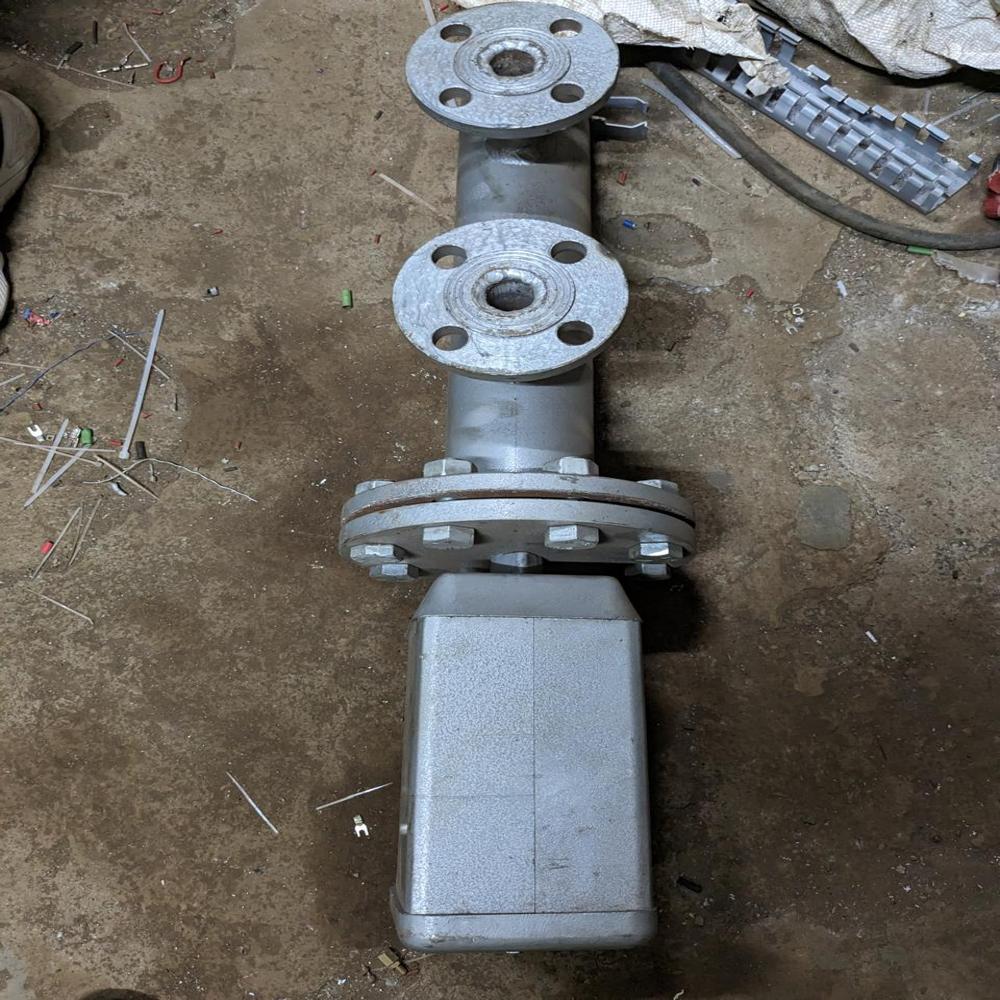

Boiler Mobrey Water Level Controller

9500.0 INR/Piece

Minimum Order Quantity : 1 Pieces

Delivery Time : 2 Days

Working Temperature 10.5 Celsius (oC)

Weight 35 Kilograms (kg)

Warranty 1

Usage & Applications industrial steam boilers, food processing boilers, dairy boilers, textile boilers, and process industries.

Switch Type AUTO

Supply Voltage 220 Volt (v)

Sensor Type AUTO

Rated Voltage 220 Volt (V)

Rated Current 5 Ampere (amp)

Protection Level IP66, IP65

Product Type Boiler Mobrey Type Water Level Controller

Pressure Type HIGH

Power Rating 5

Pole Type 4

Phase 3

Output 100

Operating Temperature 110 Celsius (oC)

Mounting Type FLANGED

Measuring Range 110 Celsius (oC)

Material MS SS

Installation Type REGULAR

Input 220

IP Rating IP65

Frequency 50 Hertz (HZ)

Features AUTO

Display NO

Dimension (L*W*H) 36X4X4 Inch (in)

Diameter 4 Inch (in)

Current 220 Volt (v)

Connectivity Type AUTO

Cable Type AUTO

Application industrial steam boilers, food processing boilers, dairy boilers, textile boilers, and process industries.

Accuracy 100 %

Supply Ability 10 Per Day

Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Western Union, Others, Letter of Credit (L/C), Paypal

Packaging Details | Specification | Details | | --------------------- | ----------------------------------------- | | **Product Name** | Boiler Mobrey Type Water Level Controller | | **Model** | Mobrey Type with Float & Chamber | | **Control Type** | Magnetic Float Switch | | **Float Material** | Stainless Steel 304 / 316 | | **Chamber Material** | Stainless Steel / Mild Steel (coated) | | **Switch Rating** | 5 A / 250 V AC (typical) | | **Operation** | Automatic Water Level Control | | **Usage** | Steam Boilers / Hot Water Boilers | | **Connection** | Threaded / Flanged (model based) | | **Compatibility** | IBR & Non-IBR Boilers | | **Temperature Range** | Up to 120 C (fluid) | | **Pressure Range** | Standard boiler operating pressure | | **Country of Origin** | India |

Main Domestic Market All India

Certifications | Specification | Details | | --------------------- | ----------------------------------------- | | **Product Name** | Boiler Mobrey Type Water Level Controller | | **Model** | Mobrey Type with Float & Chamber | | **Control Type** | Magnetic Float Switch | | **Float Material** | Stainless Steel 304 / 316 | | **Chamber Material** | Stainless Steel / Mild Steel (coated) | | **Switch Rating** | 5 A / 250 V AC (typical) | | **Operation** | Automatic Water Level Control | | **Usage** | Steam Boilers / Hot Water Boilers | | **Connection** | Threaded / Flanged (model based) | | **Compatibility** | IBR & Non-IBR Boilers | | **Temperature Range** | Up to 120 C (fluid) | | **Pressure Range** | Standard boiler operating pressure | | **Country of Origin** | India |

About this product

Boiler Mobrey Type Water Level Controller with Float and Chamber is a reliable and accurate level control device used for water level monitoring and control in steam boilers. Suitable for industrial and commercial boiler applications, ensures proper low-water cutoff and pump control.

4 Long / Detailed Description

Our Boiler Mobrey Type Water Level Controller is designed to provide precise and reliable water level control for steam boilers. It consists of a float switch, chamber, and control unit that together offer continuous water level monitoring and automatic switching operations.

Manufactured to industrial standards, this controller is ideal for preventing low-water conditions, controlling pumps, triggering alarm systems, and ensuring safe boiler operation. The float mechanism works on magnetic coupling for a long life and consistent performance even in harsh steam environments.

Compatible with various boiler sizes and types, this controller is widely used in industrial steam boilers, food processing boilers, dairy boilers, textile boilers, and process industries.

5 Technical Specifications

Specification	Details
Product Name	Boiler Mobrey Type Water Level Controller
Model	Mobrey Type with Float & Chamber
Control Type	Magnetic Float Switch
Float Material	Stainless Steel 304 / 316
Chamber Material	Stainless Steel / Mild Steel (coated)
Switch Rating	5 A / 250 V AC (typical)
Operation	Automatic Water Level Control
Usage	Steam Boilers / Hot Water Boilers
Connection	Threaded / Flanged (model based)
Compatibility	IBR & Non-IBR Boilers
Temperature Range	Up to 120C (fluid)
Pressure Range	Standard boiler operating pressure
Country of Origin	India

6 Features / Benefits (USP)

Accurate float level sensing and switching
Long service life with corrosion-resistant parts
Compatible with various boiler diameters
Low maintenance and easy installation
Ideal for pump control and low-water cut-off
Magnetic coupling mechanism for reliable operation
Suitable for industrial steam and hot water boilers

7 Applications (Use Cases)

Industrial Steam Boilers
Dairy & Food Processing Boilers
Textile & Dyeing Boilers
Process Industry Boilers
Chemical & Pharmaceutical Boilers
Hot Water Boilers
Pump Control Systems
Condensate Return Tanks

8 Packing & Supply (Important for Buyers)

Packing Details:
Individual unit packed in protective box
Each float + chamber set wrapped in bubble wrap
Powder-coated MS chamber / SS floating parts protected with foam
Outer carton with product label & model info
Bulk packing on pallet for large orders

Supply Info:
Minimum Order Quantity: 1 Piece
Packing Type: Box Packing / Bubble + Carton + Pallet
Delivery Time: 15 Working Days (stock basis)
Supply Ability: Regular Stock Available
Payment Terms: Advance / Online Transfer / Credit (negotiable)

9 Price Format (Choose Any One)

Option A Show Price (Better Enquiries):

4,500 14,000 per set
(Price varies with chamber type, float size, material & switches)

Option B Hide Price:

Price on Request

Suggested TradeIndia Category

Industrial Controls Level Switches & Sensors
OR
Boilers & Boiler Accessories Water Level Controllers

Seller Message (Example)

If buyer asks:

What is included?
You can reply:
Mixer unit + float + chamber + installation kit
Easy mount & wiring instructions
Tested before dispatch
