Furnace Material

(2 products available)

Step into the future with our Furnace Material, a superb solution meticulously crafted to enhance furnace performance across industries. As an experienced exporter, service provider, manufacturer, distributor, supplier, trader, wholesaler, retailer, and fabricator with over 6.0 years of expertise, we deliver unparalleled quality with products like the Industrial Rotary Airlock Valve and Refractory Fire Brick. Our Furnace Material boasts exceptional durability, unrivaled heat resistance, and superb thermal insulation, making it the featured choice for demanding applications. Enjoy enhanced energy efficiency, reduced maintenance costs, and prolonged service life with these high-performing materials. Whether you''re in Africa, Asia, Eastern or Western Europe, North or South America, our supply ability spans across All India and international markets, ensuring true global outreach. For a limited time, seize this extraordinary deal and experience how our Furnace Material outclasses traditional counterparts. Designed for exceptional performance and reliability, our solution provides the ultimate edge for your furnace operations. Compared to competitors, our offering delivers unmatched quality and world-class results tailored to diverse industrial needs. Trust us to create value in every transaction and redefine your expectations with cutting-edge Furnace Material perfected through years of expertise.

View More Details

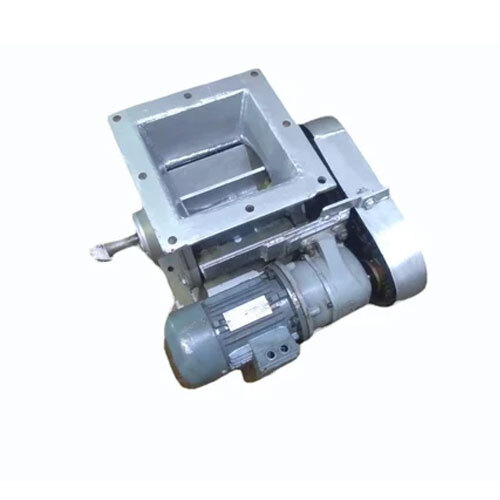

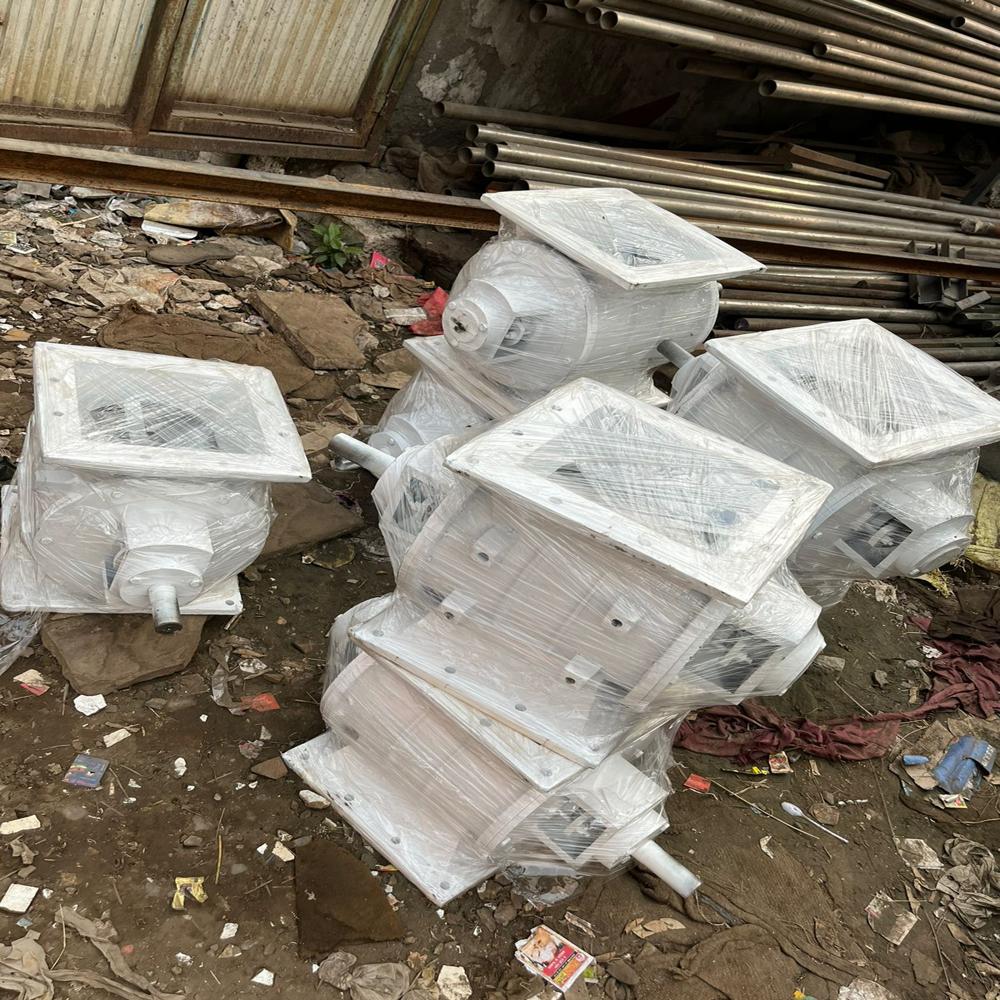

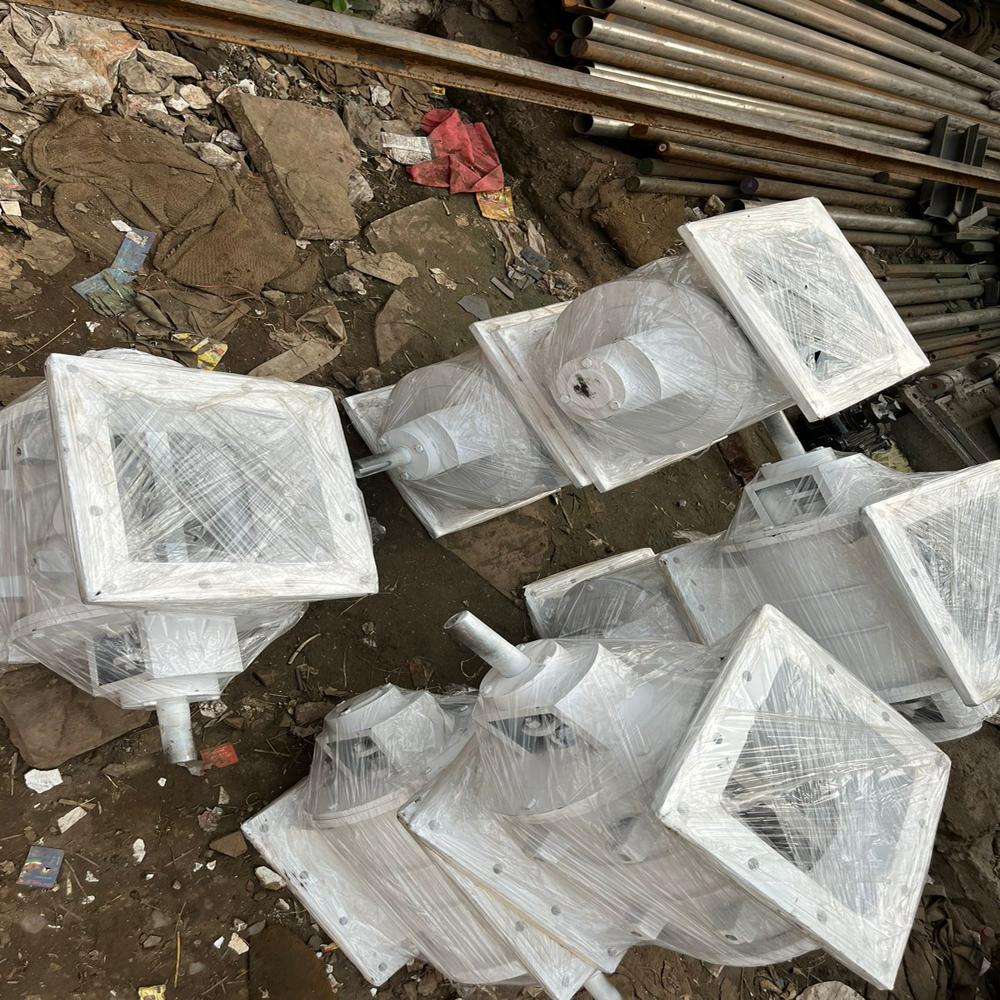

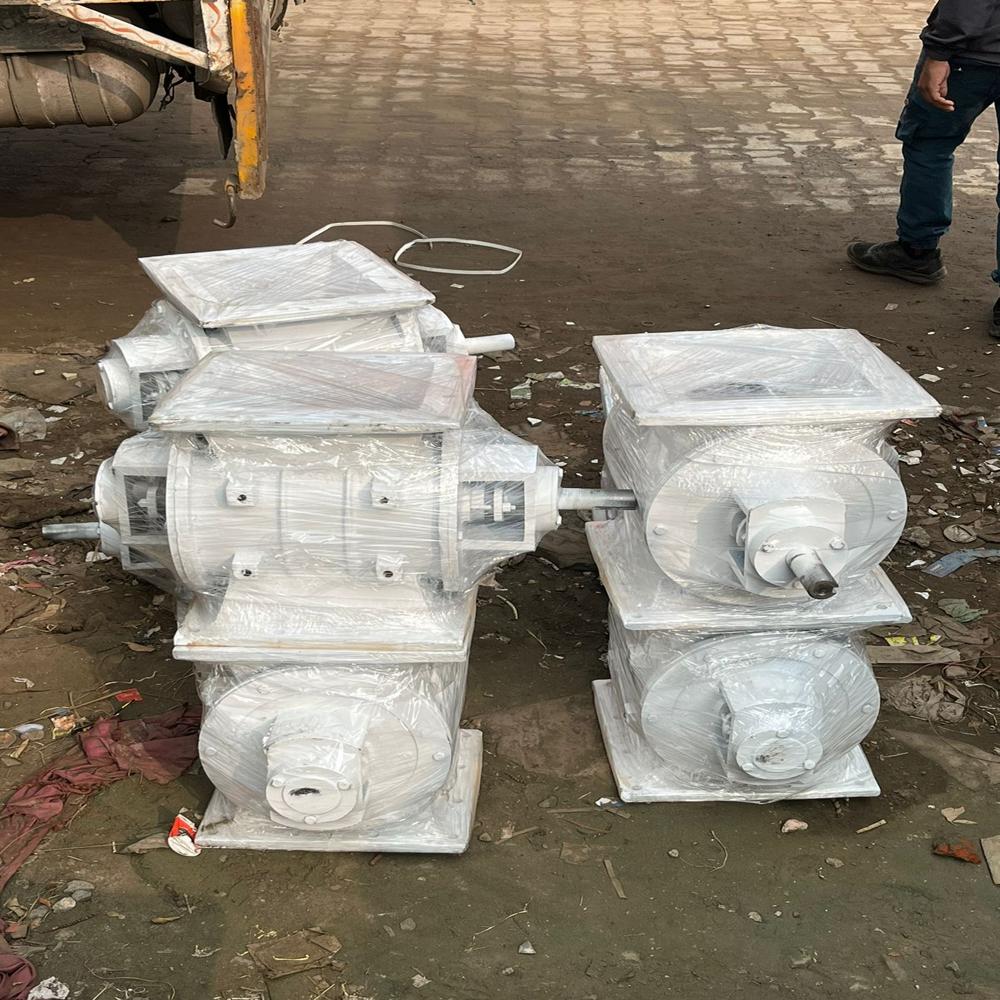

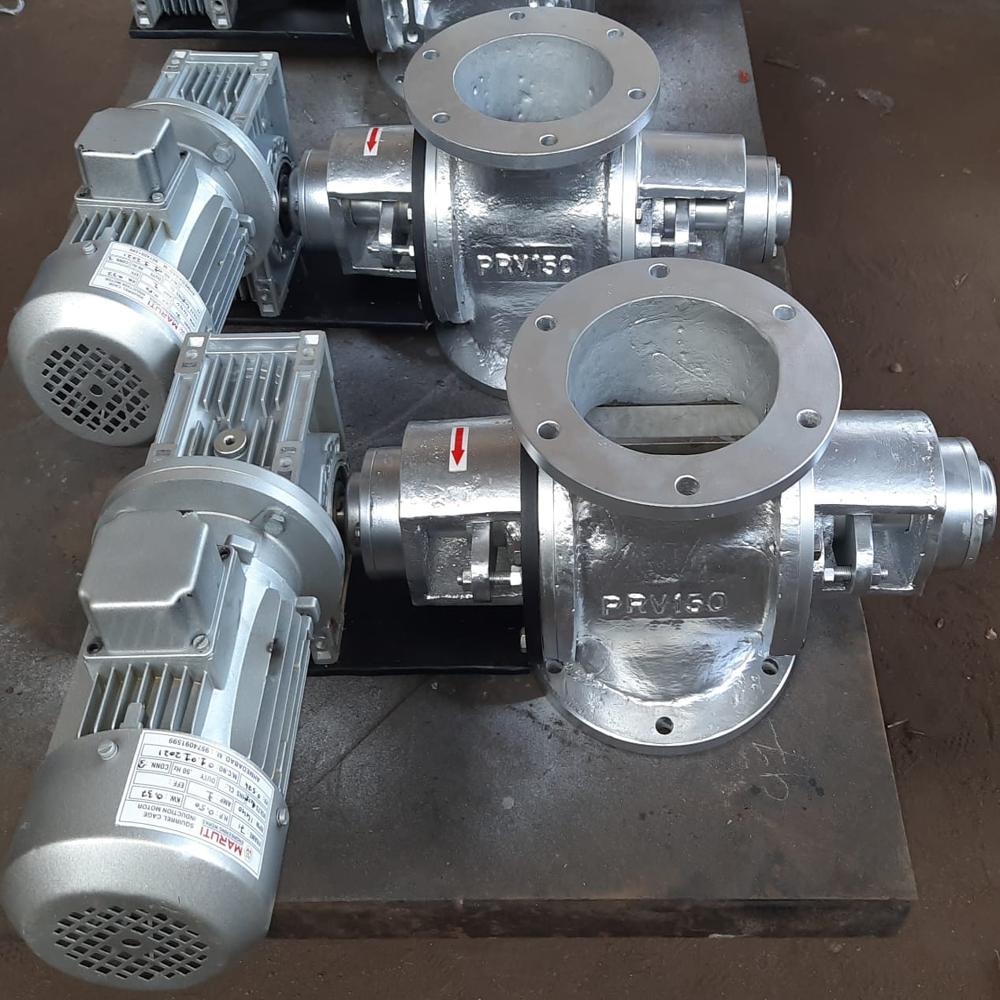

Industrial Rotary Airlock Valve
  • Industrial Rotary Airlock Valve
  • Industrial Rotary Airlock Valve
  • Industrial Rotary Airlock Valve

Industrial Rotary Airlock Valve

11500.0 INR/Piece

Minimum Order Quantity : 1 Pieces

Delivery Time : 2 Days

Width 12 Inch (in)

Weight 70 Kilograms (kg)

Warranty 1 Year

Voltage 220 Volt (v)

Usage Dust, Powder, Granules BOILER

Type AUTO

Size 13X14X12

Rating IP55

Product Type Rotary Airlock Valves

Power 1-5 Horsepower (HP)

Length 12 Inch (in)

Height 12 Inch (in)

Glass Size NA

Fuel Type NA

Feature AUTOMATIC

Dimensions 12 Inch (in)

Condition New

Color Silver

Capacity 1000 Kg/hr

Application Dust, Powder, Granules BOILER

Supply Ability 10 Per Day

Sample Available No

Payment Terms Cash Advance (CA), Letter of Credit (L/C), Others, Cash on Delivery (COD), Delivery Point (DP), Days after Acceptance (DA), Cheque, Cash in Advance (CID), Cash Against Delivery (CAD), Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C)

Packaging Details | Parameter | Details | | ------------------------- | ------------------------------------ | | **Product Type** | Rotary Airlock Valve / Rotary Feeder | | **Body Material** | Cast Iron / Mild Steel / SS | | **Rotor Type** | Open / Closed End | | **No. of Vanes** | 6 / 8 (Model based) | | **Inlet / Outlet Size** | As per requirement | | **Drive Type** | Geared Motor / Chain Drive | | **Operating Speed** | 10 40 RPM | | **Operating Temperature** | Up to 250 C | | **Application Media** | Dust, Powder, Granules | | **Mounting** | Horizontal / Vertical | | **Country of Origin** | India |

Main Export Market(s) Africa, Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market All India

Certifications | Parameter | Details | | ------------------------- | ------------------------------------ | | **Product Type** | Rotary Airlock Valve / Rotary Feeder | | **Body Material** | Cast Iron / Mild Steel / SS | | **Rotor Type** | Open / Closed End | | **No. of Vanes** | 6 / 8 (Model based) | | **Inlet / Outlet Size** | As per requirement | | **Drive Type** | Geared Motor / Chain Drive | | **Operating Speed** | 10 40 RPM | | **Operating Temperature** | Up to 250 C | | **Application Media** | Dust, Powder, Granules | | **Mounting** | Horizontal / Vertical | | **Country of Origin** | India |

About this product

Rotary Airlock Valve / Rotary Airlock Feeder for Industrial Dust & Powder Handling

2 High-Search Keywords (COPYPASTE READY)

Rotary Airlock Valve, Rotary Airlock Feeder, Rotary Valve, Industrial Rotary Airlock Valve, Rotary Feeder Valve, Dust Airlock Valve, Powder Handling Rotary Valve, Cement Rotary Airlock Valve, Fly Ash Rotary Valve, Boiler Ash Handling Rotary Valve, Pneumatic Conveying Airlock, Rotary Airlock Valve India

3 Short Description

Heavy-duty Rotary Airlock Valve designed for controlled discharge of powder, dust, and granular materials while maintaining airlock between pressure zones in industrial systems.

4 Detailed Product Description (Professional)

Our Rotary Airlock Valves are widely used in material handling systems to regulate the flow of bulk solids while preventing air leakage between high-pressure and low-pressure zones.
They are essential components in pneumatic conveying systems, dust collection units, boilers, furnaces, and process plants.

Manufactured with precision-machined rotors and robust housings, these valves ensure smooth operation, minimal leakage, and long service life even under continuous industrial duty.

Available in cast iron, mild steel, and stainless steel constructions, suitable for abrasive, dusty, and free-flowing materials.

5 Technical Specifications

Parameter Details
Product Type Rotary Airlock Valve / Rotary Feeder
Body Material Cast Iron / Mild Steel / SS
Rotor Type Open / Closed End
No. of Vanes 6 / 8 (Model based)
Inlet / Outlet Size As per requirement
Drive Type Geared Motor / Chain Drive
Operating Speed 10 40 RPM
Operating Temperature Up to 250C
Application Media Dust, Powder, Granules
Mounting Horizontal / Vertical
Country of Origin India

6 Applications (Use Kahan Hota Hai)

Steam Boilers & Ash Handling Systems
Cement Plants
Fly Ash & Dust Collection Systems
Pneumatic Conveying Systems
Chemical & Pharmaceutical Plants
Food Processing Units
Steel & Power Plants

7 USP Why Choose Our Rotary Airlock Valve?

Excellent air sealing performance
Heavy-duty industrial construction
Smooth and uniform material discharge
Low maintenance & long service life
Suitable for continuous operation
Custom sizes & materials available

8 Packing Details (TradeIndia Important)

Packing Method:

  • Valve body wrapped with bubble sheet

  • Shaft & rotor protected with foam

  • Geared motor packed separately

  • Wooden / MS frame packing for safe transit

  • Pallet packing for bulk orders

Supply Info:
MOQ: 1 Unit
Delivery Time: 720 Days
Supply Ability: As per order
Payment Terms: Advance / Online Transfer

View More Details

Get a Price/QuoteRequest To Call Back

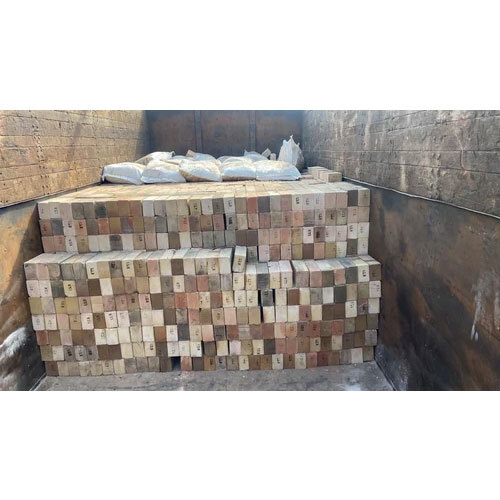

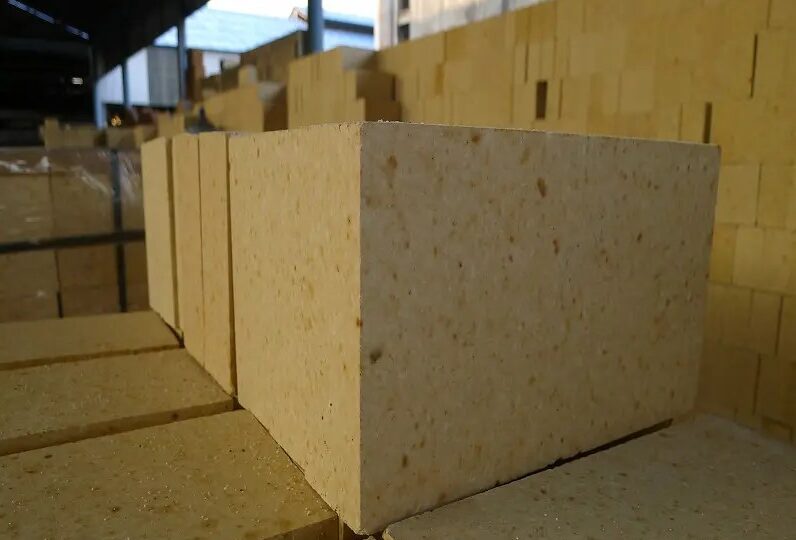

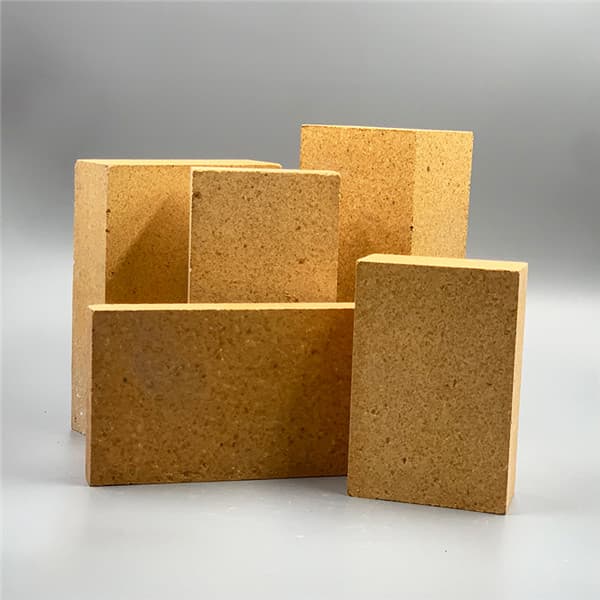

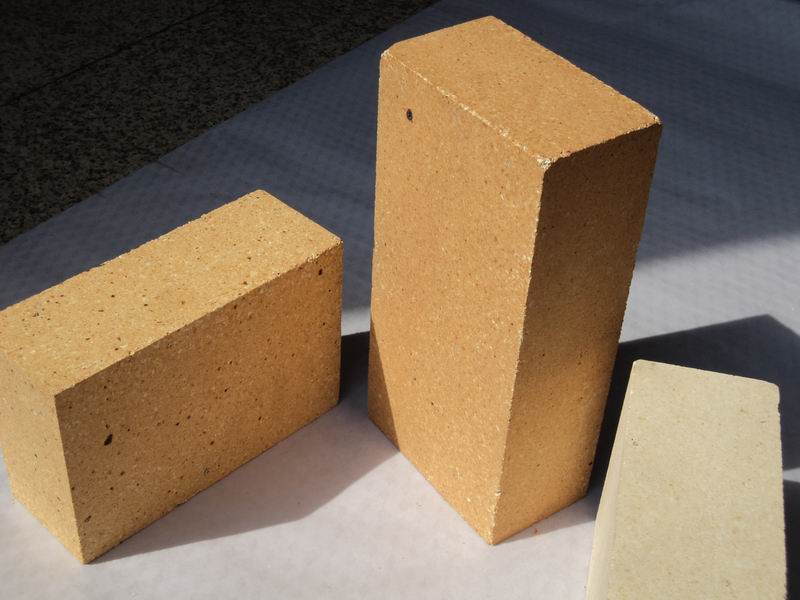

Refractory Fire Brick
  • Refractory Fire Brick
  • Refractory Fire Brick
  • Refractory Fire Brick

Refractory Fire Brick

30.0 INR/Piece

Minimum Order Quantity : 500 Pieces

Delivery Time : 1 Days

Width 9 Inch (in)

Weight 3.9 Kilograms (kg)

Warranty NA

Voltage 220 Volt (v)

Usage Melting Furnace

Type HEATING

Size 9X4X3X2.5

Product Type High Alumina Refractory Brick

Power 1 Horsepower (HP)

Length 9 Inch (in)

Height 3 Inch (in)

Glass Size NA

Fuel Type 40

Feature MANAUL

Dimensions 9X4X3X2.5 Inch (in)

Condition New

Color GREY BROWN YELLOW

Capacity 1200 Pcs/hr

Application Use: Boilers, chimneys, general furnace lining

Supply Ability 2000 Per Day

Sample Available No

Payment Terms Cash Against Delivery (CAD), Paypal, Telegraphic Transfer (T/T), Western Union, Others, Letter of Credit (L/C), Cash in Advance (CID), Cheque, Letter of Credit at Sight (Sight L/C), Cash on Delivery (COD), Cash Advance (CA), Days after Acceptance (DA), Delivery Point (DP)

Packaging Details Material & Grade Details Fire Clay Bricks Alumina: 30 35% Max Temp: 1200 1300 C Use: Boilers, chimneys, general furnace lining High Alumina Bricks Alumina: 40% / 50% / 60% Max Temp: 1400 1700 C Use: High-temperature furnaces, kilns, boilers Insulation Bricks Low density, high insulation Use: Heat loss reduction, backup lining Acid Proof Bricks Chemical resistant Use: Chemical plants, acid areas, drains

Main Export Market(s) Middle East, Australia, North America, Eastern Europe, Africa, Western Europe, Asia, South America, Central America

Main Domestic Market All India

Certifications Material & Grade Details Fire Clay Bricks Alumina: 30 35% Max Temp: 1200 1300 C Use: Boilers, chimneys, general furnace lining High Alumina Bricks Alumina: 40% / 50% / 60% Max Temp: 1400 1700 C Use: High-temperature furnaces, kilns, boilers Insulation Bricks Low density, high insulation Use: Heat loss reduction, backup lining Acid Proof Bricks Chemical resistant Use: Chemical plants, acid areas, drains

About this product

1 Product Types (Range Covered)

  • Refractory Fire Brick

  • Fire Clay Brick

  • High Alumina Brick (40%, 50%, 60%)

  • Insulation Brick

  • Heat Resistant Brick

  • Furnace Brick

  • Kiln Brick

  • Boiler Fire Brick

  • Acid Proof Brick

  • Industrial Fire Brick

  • High Temperature Refractory Brick

  • ,High Alumina Brick, Insulation Brick, Furnace Brick,Boiler Fire Brick, Refractory Brick, Industrial Fire Brick, 40% Alumina Brick, 60% Alumina Brick, High Temperature Brick, Refractory Material

2 Applications (Use Kahan Hota Hai)

  • Steam Boilers & Thermic Fluid Heaters

  • Furnaces & Kilns

  • Chimneys & Hot Air Ducts

  • Incinerators & Power Plants

  • Steel, Cement & Chemical Industries

  • Sugar Mills & Process Plants

3 Material & Grade Details

Fire Clay Bricks

  • Alumina: 3035%

  • Max Temp: 12001300C

  • Use: Boilers, chimneys, general furnace lining

High Alumina Bricks

  • Alumina: 40% / 50% / 60%

  • Max Temp: 14001700C

  • Use: High-temperature furnaces, kilns, boilers

Insulation Bricks

  • Low density, high insulation

  • Use: Heat loss reduction, backup lining

Acid Proof Bricks

  • Chemical resistant

  • Use: Chemical plants, acid areas, drains

4 Technical Specifications (Standard Range)

Parameter Details
Material Fire Clay / High Alumina
Alumina Content 30% 60%
Max Service Temp 1200C 1700C
Bulk Density 1.8 2.4 g/cm
Porosity 18% 24%
Cold Crushing Strength 150 350 kg/cm
Standard Size 230 115 75 mm
Shape Standard / Special Shapes
Country of Origin India

5 USP Kyun Hamare Refractory Bricks?

  • High temperature resistance

  • Long service life

  • Accurate dimensions

  • Low porosity better fuel efficiency

  • Suitable for IBR & Non-IBR boilers

  • Bulk supply available

  • Custom sizes & shapes possible

6 Packing & Supply

  • Packing: Pallet / Gunny / Wooden Packing

  • MOQ: 500 Bricks

  • Delivery Time: 17 Days (Stock based)

  • Supply Ability: Bulk / Regular

7 Price Range (Indicative)

  • Fire Clay Brick: 32 55 / piece

  • High Alumina Brick (40%): 55 75 / piece

  • High Alumina Brick (60%): 75 120 / piece
    (Price grade, size & quantity par depend karega)
